DNS Records Explained
DNS (Domain Name System) entries take a human-friendly name, such as store.example.com, and translate it to an IP address. The DNS can quickly be updated with some propagation time, which is the length of time needed to update records across the Internet. There are some DNS Entries you can create. The following DNS Entries can be created or modified from within the DNS Zone Editor. For help, see How to Modify Your DNS Records.

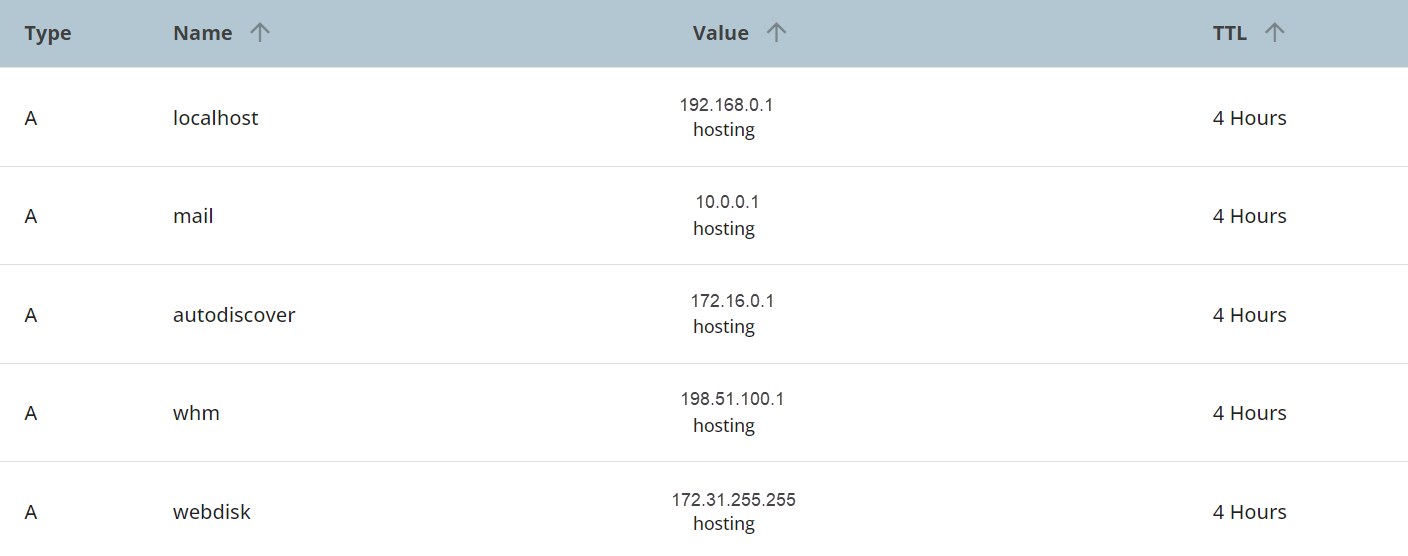

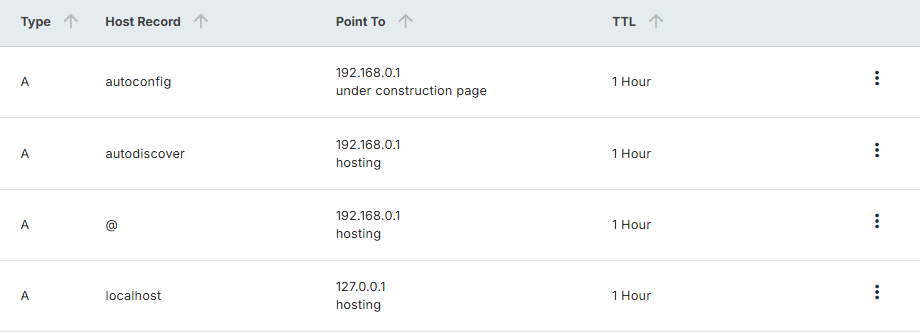

An A record (Address Record) points a domain or subdomain to an IP address. For example, you can use it for store.website.com or blog.website.com and point it to where you have your store. This is a common practice for people who use Amazon, eBay, Tumblr, etc.
For example, an A Record is used to point a logical domain name, such as "google.com," to the IP address of Google's hosting server, "126.96.36.199".
These records point traffic from example.com (indicated by @) and ftp.example.com to the IP address 188.8.131.52. They also point localhost.example.com to the server that the domain is hosted on. This allows the end-user to type in a human-readable domain while the computer can continue to work with numbers.

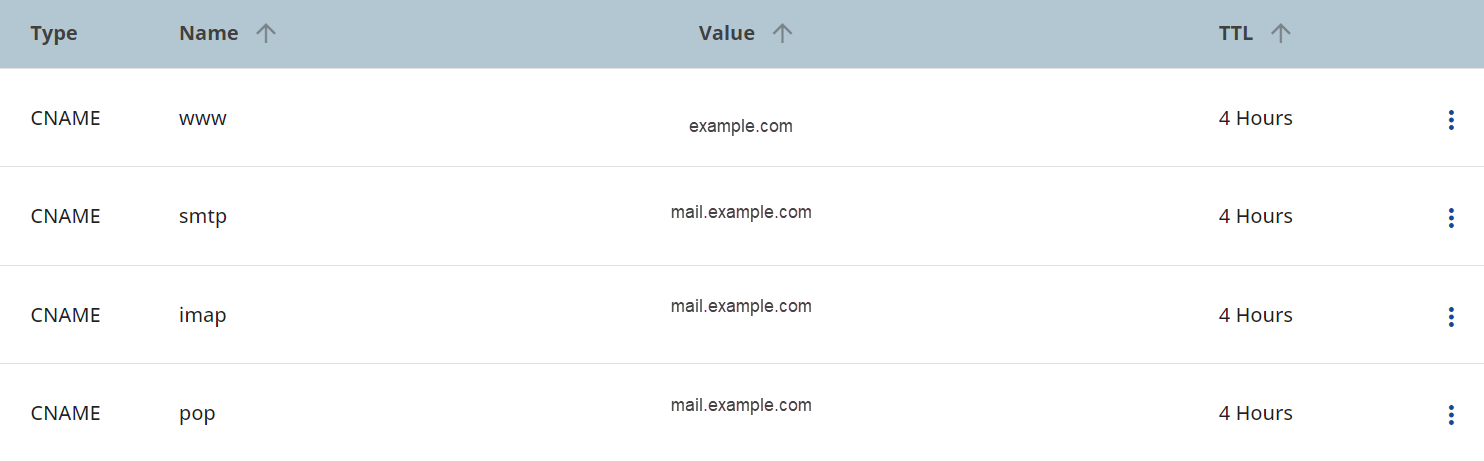

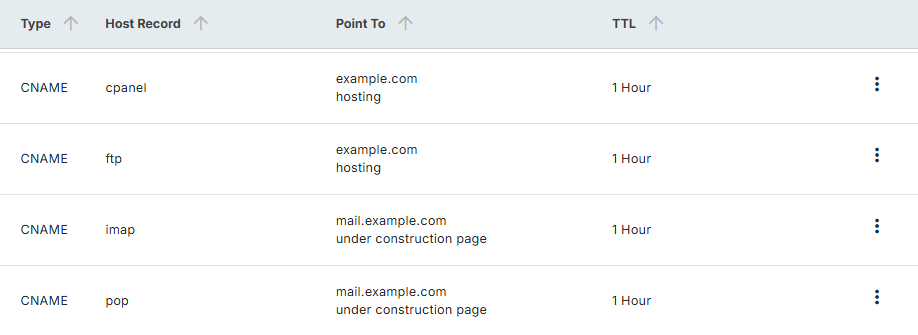

A CNAME (Canonical Name) points one domain or subdomain to another domain name, allowing you to update one A Record each time you make a change, regardless of how many Host Records need to resolve to that IP address.
These records point www.example.com to example.com, imap.example.com to mail.example.com, and docs.example.com to ghs.google.com. The first record allows the domain to resolve to the same server with or without the www subdomain. The second record allows you to use an alternative subdomain for email hosting and delivery. The third record allows you to use the docs.example.com subdomain with G Suite, where you can use Google's document management system. This type of record requires additional configuration with Google.
An MX Entry (Mail Exchanger) directs email to a particular mail server. Like a CNAME, MX Entries must point to a domain and never point directly to an IP address.
For more information on managing MX records, please see DNS Management - How To Edit MX Records.

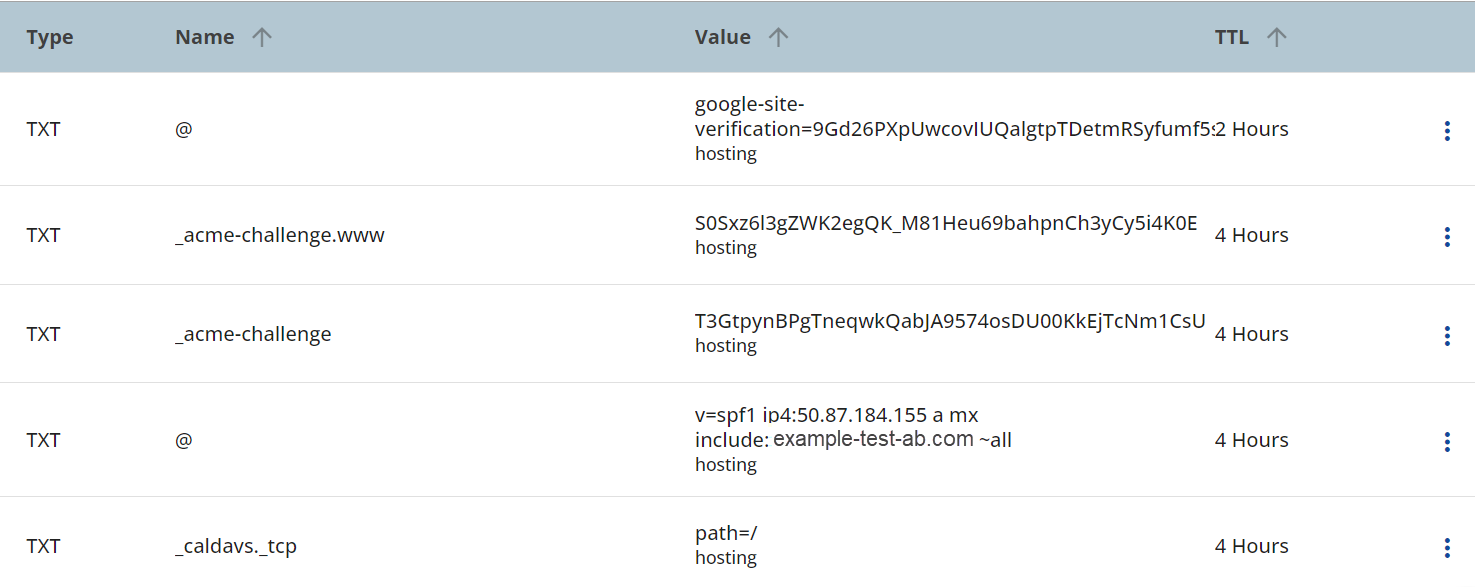

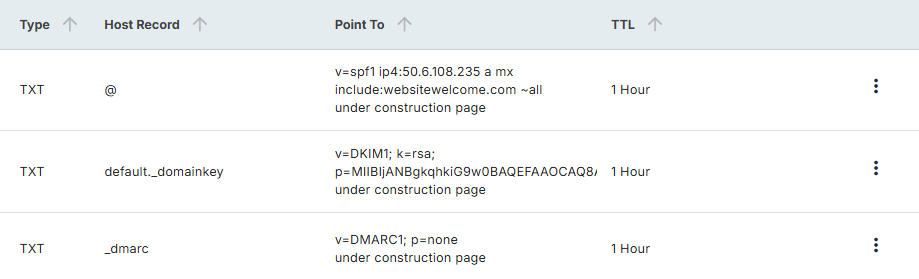

A TXT (Text) record was originally intended for human-readable text. These records are dynamic and can be used for several purposes. TXT records are commonly used for Google Verification.
The TXT Value is what the record 'points to,' but these records aren't used to direct any traffic. Instead, they're used to provide needed information to outside sources.
The First record is used for an SPF, Sender Policy Framework, records. Those records are used by many email systems to help identify if the email is coming from a trusted source, helping filter out spam or messages pretending to be from your domain (called spoofing), for more information on How To Setup a DNS SPF (Sender Policy Framework) Record, kindly visit that article.
The second record is used for DomainKeys, which is also used to verify that the email came from a trusted source. More information on DomainKeys can be found at http://www.dkim.org/.
For more information on TXT records, please see What is a TXT Record.
An SRV (Service) record points one domain to another domain name using a specific destination port. SRV records allow specific services, such as VOIP or IM, to be directed to a separate location.
Example:Enabling your domain to use Google's xmpp server is a good example to showcase. Google's help article states that the SRV record should be in this format:
_xmpp-server._tcp.gmail.com. IN SRV 5 0 5269 xmpp-server.l.google.com.Under "Add DNS Record," you will need to enter the settings this way:
- Service: _xmpp-server
- Protocol: _tcp
- Host: chat (If you want to use the chat subdomain. Replace this with the subdomain that you want to us, or @ for the root domain.)
- TTL: 14400
- Type: SRV
- Priority: 5
- Weight: 0
- Port: 5269
- Points To: xmpp-server.l.google.com
The AAAA record is similar to the A record, but it allows you to point the domain to an Ipv6 address. More information on IPv6 can be found at http://ipv6.com/.
- Zone File. This is where all the DNS records are stored for a domain.
- Host Record. This is the domain or subdomain you wish to use. The @ symbol is used to indicate the root domain itself. In our example, the Host Record 'ftp' would be for the subdomain ftp.google.com and '@' would be google.com itself.
- Points to. This is the destination server that the domain or subdomain is sending the traffic to.
- TTL. The 'time to live' value indicates the amount of time the record is cached by a DNS Server, such as your Internet service provider. The default (and lowest accepted) value is 14400 seconds (4 hours). You do not normally need to modify this value.
- Action. This allows you to modify or remove existing records.
- Weight. This is similar to priority, as it controls the order in which multiple records are used. Records are grouped with other records that have the same Priority value. As with MX Entries, lower numbers are used before higher numbers.
- Port. The server or computer uses this to process traffic to specific services, ensuring that all traffic comes through the door that it's expected on.
- Target. This is the destination the record is sending traffic to.
